Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) Others available upon request – Contact us for details |
| Main Insert | Stainless steel threaded stud (AISI 303). |

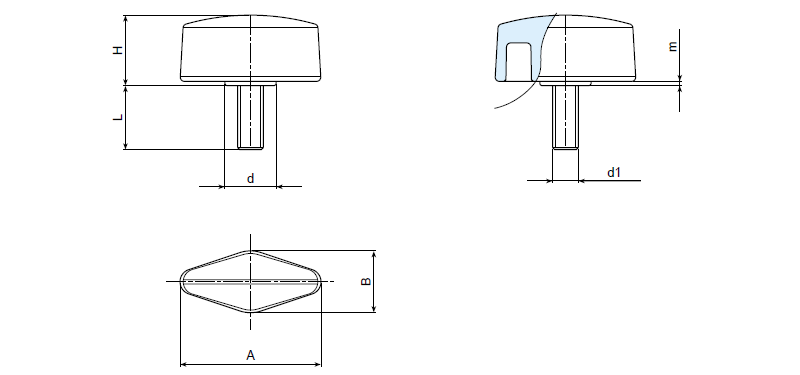

| Art. | A | B | H | m | d | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|
| L751-32 M6 CIN | 33 | 15 | 15.5 | 1 | 12 | M6 | 16-20-25-30-40 | 9-9.5-10-12-16 |
| L751-32 M8 CIN | 33 | 15 | 15.5 | 1 | 12 | M8 | 16-20-30-40 | 12.5-13.5-15-17 |
| L751-48 M6 CIN | 48 | 15 | 17 | 1 | 12.5 | M6 | 20-30-40 | 17-18-19-22 |
| L751-48 M8 CIN | 48 | 15 | 17 | 1 | 12.5 | M8 | 20-30-40 | 22-25.5-28 |
