Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) Orange (RAL 2004) Others available upon request – Contact us for details |
| Main Insert | Brass blind threaded bush. |

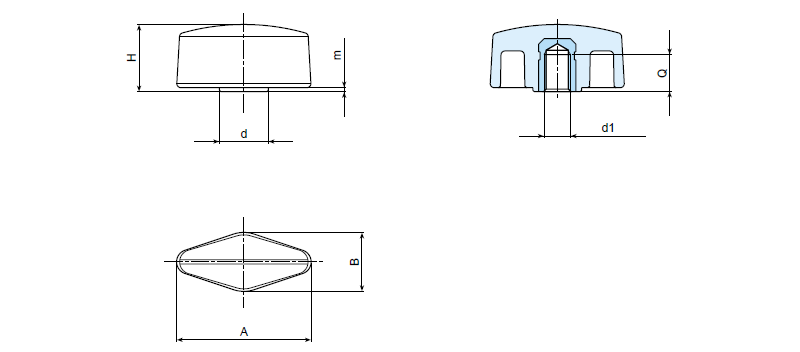

| Art. | A | B | H | m | d | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|
| L750-32 M5 | 33 | 15 | 16.5 | 1 | 12 | M5 | 7 | 7 |
| L750-32 M6 | 33 | 15 | 16.5 | 1 | 12 | M6 | 7 | 6 |
| L750-32 M8 | 33 | 15 | 16.5 | 1 | 12 | M8 | 7 | 6 |
| L750-48 M6 | 48 | 15 | 17 | 1 | 12.5 | M6 | 7 | 10 |
| L750-48 M8 | 48 | 15 | 17 | 1 | 12.5 | M8 | 7 | 10 |
