Description
| Material | Steel with property class 5.8. |
| Surface | Low roughness turned surface. |
| Colour | B – Black -oxide (surface treatment) |
| Inserts | (1) Half-moon shaped ring for black-oxide treated harmonic steel shafts (UNI 7434 type H). (2) Galvanised steel spring. (3) 7/32 galvanised steel ball. |
| Handle | Movable handle locked at stroke end by O-rings. |
| Hole | Female threaded hole made in the steel with tolerance class of 6H. |

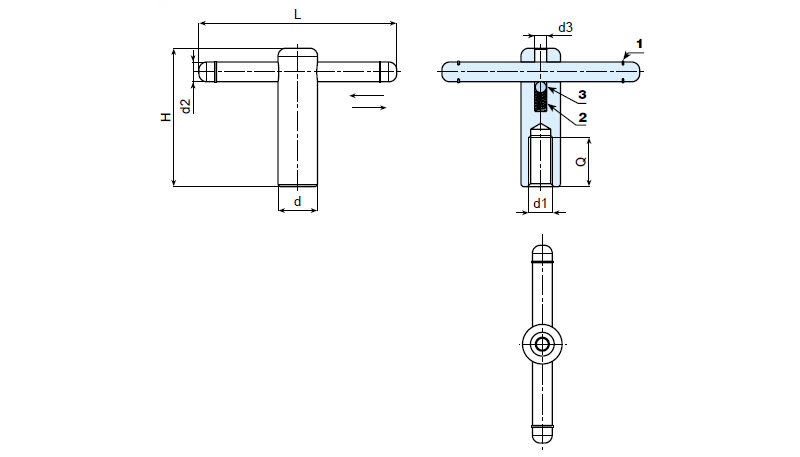

| Art. | d | L | H | d2 | d3 | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W700-85 M10 | 18 | 82 | 62 | 8 | 6 | M10 | 25 | |
| W700-105 M12 | 20 | 82 | 72 | 10 | 6 | M12 | 30 | |
| W700-125 M16 | 24 | 82 | 87 | 12 | 6 | M16 | 40 | |
| W700-145 M20 | 30 | 82 | 97 | 16 | 6 | M20 | 45 |
