Description
| Material | Steel with property class 5.8. |
| Surface | Low roughness turned surface. |
| Colour | B – Black -oxide (surface treatment) |
| Handle Fastening Method | Push-fit. Cannot be moved or removed. |

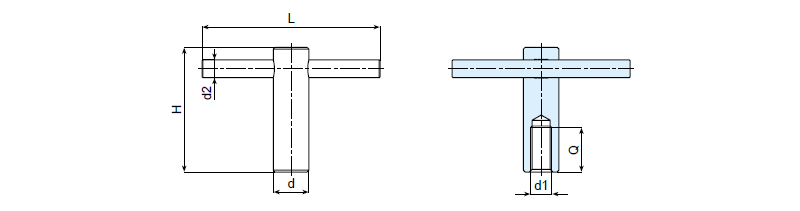

| Art. | d | L | H | d2 | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| W701-85 M10 | 18 | 82 | 62 | 8 | M10 | 25 | |
| W701-105 M12 | 20 | 82 | 72 | 10 | M12 | 30 | |
| W701-125 M16 | 24 | 82 | 87 | 12 | M16 | 40 | |
| W701-145 M20 | 30 | 82 | 97 | 16 | M20 | 45 |
