Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) Others available upon request – Contact us for details |
| Insert | Zinc plated steel articulated, threaded stem. |

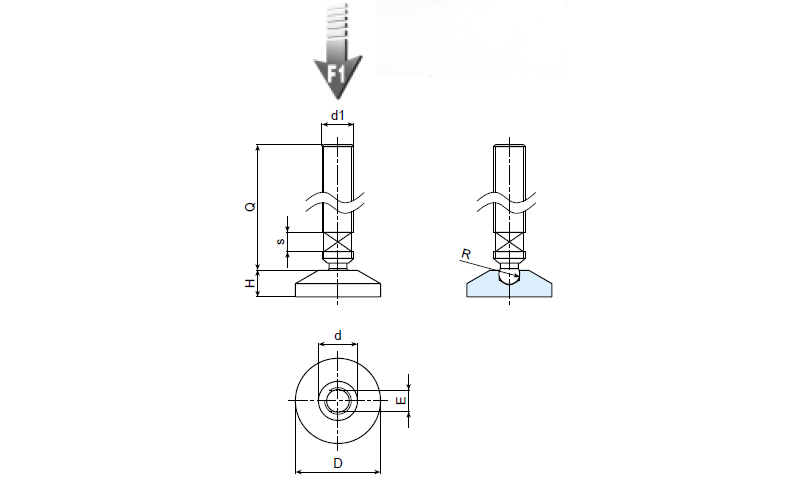

| Art. | D | H | d | E | s | R | d1 | Q | Weight (gr) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| P814-32 M10 | 32 | 10 | 15.5 | 6 | 6 | 8 | M10 | 50-90 | 32-53 | 4000 |
| P814-32 M12 | 32 | 10 | 15.5 | 6 | 6 | 8 | M12 | 50-90 | 42-71 | 4000 |
