Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Zinc plated steel right through threaded bush. |

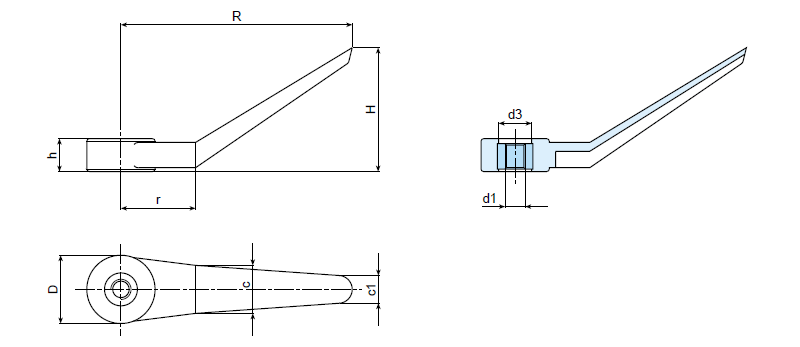

| Art. | R | D | H | h | r | c | c1 | d3 | d1 | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|
| T710-90 M8 | 90 | 27 | 48 | 14 | 29 | 19 | 12 | 13.5 | M8 | 27 |
| T710-90 M10 | 90 | 27 | 48 | 14 | 29 | 19 | 12 | 13.5 | M10 | 26 |
| T710-90 M12 | 90 | 27 | 48 | 14 | 29 | 19 | 12 | 13.5 | M12 | 28 |
