Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) Others available upon request – Contact us for details |
| Main Insert | Stainless steel blind threaded bush (AISI 303). |

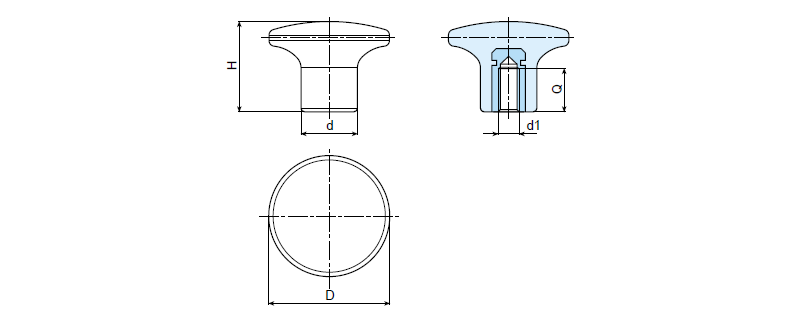

| Art. | D | H | d | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|
| I117-22 M05 CIN | 22 | 17 | 11 | M5 | 13 | 8 |
| I117-22 M06 CIN | 22 | 17 | 11 | M6 | 16 | 9 |
| I117-26 M05 CIN | 26 | 20.5 | 13 | M5 | 13 | 10 |
| I117-26 M06 CIN | 26 | 20.5 | 13 | M6 | 16 | 11 |
| I117-26 M08 CIN | 26 | 20.5 | 13 | M8 | 16 | 12 |
| I117-32 M05 CIN | 32 | 24 | 15 | M5 | 16 | 14 |
| I117-32 M06 CIN | 32 | 24 | 15 | M6 | 16 | 16 |
| I117-32 M08 CIN | 32 | 24 | 15 | M8 | 16 | 18 |
| I117-45 M10 CIN | 45 | 32 | 21 | M10 | 16 | 35 |
| I117-45 M12 CIN | 45 | 32 | 21 | M12 | 20 | 39 |
