Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) Others available upon request – Contact us for details |
| Main Insert | Brass blind threaded bush. |

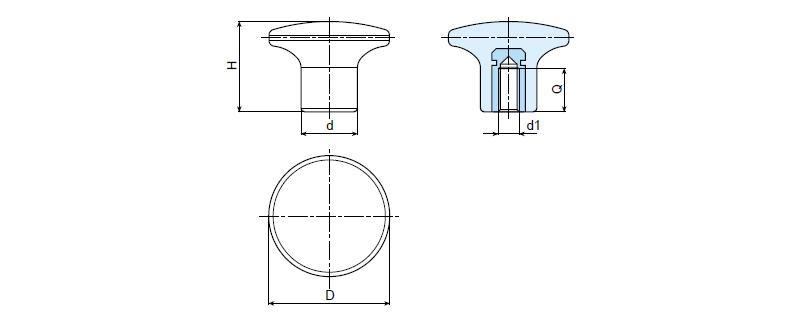

| Art. | D | H | d | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|
| I117-22 M04 | 22 | 17 | 11 | M4 | 8 | 6 |
| I117-22 M05 | 22 | 17 | 11 | M5 | 10 | 6 |
| I117-22 M06 | 22 | 17 | 11 | M6 | 11 | 6 |
| I117-26 M05 | 26 | 20.5 | 13 | M5 | 10 | 9 |
| I117-26 M06 | 26 | 20.5 | 13 | M6 | 11 | 9 |
| I117-26 M08 | 26 | 20.5 | 13 | M8 | 15 | 10 |
| I117-32 M05 | 32 | 24 | 15 | M5 | 10 | 12 |
| I117-32 M06 | 32 | 24 | 15 | M6 | 9 | 12 |
| I117-32 M08 | 32 | 24 | 15 | M8 | 15 | 14 |
| I117-45 M08 | 45 | 32 | 21 | M8 | 20 | 32 |
| I117-45 M10 | 45 | 32 | 21 | M10 | 18 | 33 |
| I117-45 M12 | 45 | 32 | 21 | M12 | 18 | 34 |
| I117-45 M14 | 45 | 32 | 21 | M14 | 33 | 38 |
| I117-45 M16 | 45 | 32 | 21 | M16 | 33 | 43 |
