Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Brass blind threaded bush. |

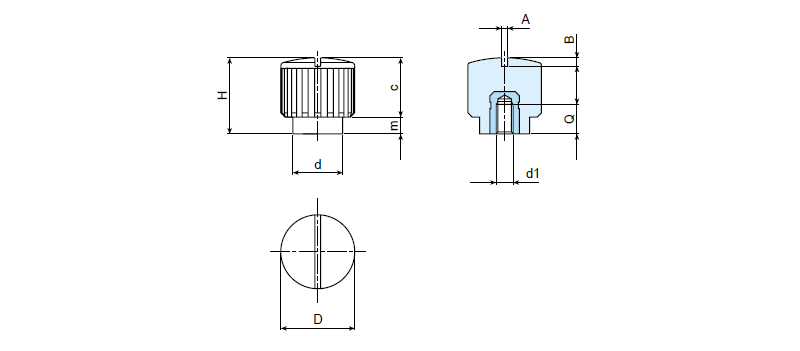

| Art. | D | H | d | m | c | A | B | Q | d1 | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|
| H773-18 M04 | 17.5 | 18 | 12 | 4 | 14 | 1.2 | 1.5 | 7 | M4 | 6.5 |
| H773-18 M05 | 17.5 | 18 | 12 | 4 | 14 | 1.2 | 1.5 | 7 | M5 | 7 |
| H773-18 M06 | 17.5 | 18 | 12 | 4 | 14 | 1.2 | 1.5 | 7 | M6 | 7 |
