Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Zinc plated steel threaded stud. |
| Art. | D | H | d | m | c | A | B | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|
| H172-20 M06 | 20 | 8 | 13.5 | 1 | 7 | 14 | 2.5 | M6 | 15-24-29-34 | 6,5-8-9-10 |

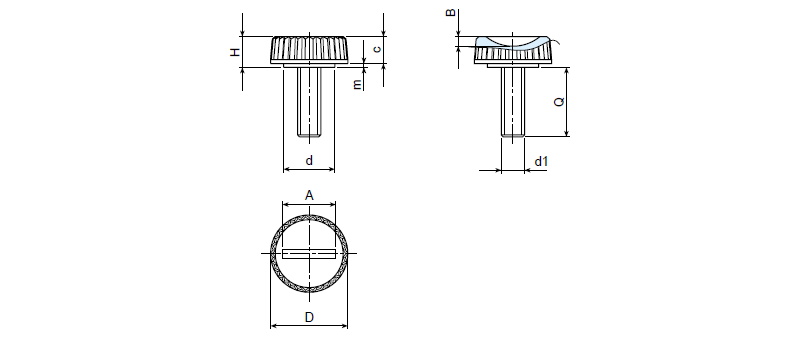

Knurled Handwheel With Screwdriver Slot And Threaded Stud (H172)
If available, alternative imperial dimensions for this product will be displayed.
If none is shown, please feel free to call us to discuss your requirements.
