Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Zinc plated steel threaded stud. |

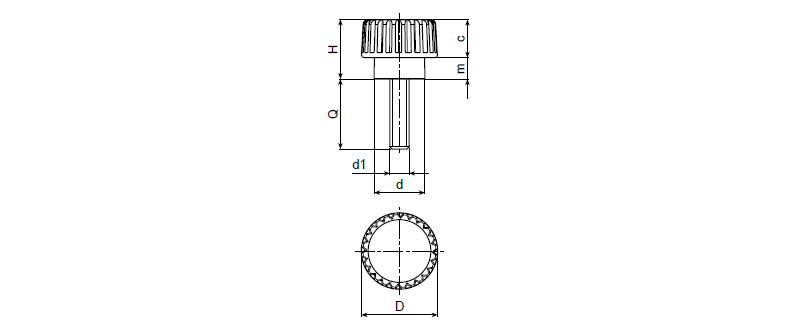

| Art. | D | H | d | m | c | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|
| H759-15 M03 | 15 | 12 | 10 | 4.5 | 7.5 | M3 | 24 | 3.5 |
| H759-15 M04 | 15 | 12 | 10 | 4.5 | 7.5 | M4 | 10-16-20-30 | 3.5-4-4-4.5 |
| H759-15 M05 | 15 | 12 | 10 | 4.5 | 7.5 | M5 | 10-16-20-30 | 4-4.5-5.5-6.5 |
| H759-15 M06 | 15 | 12 | 10 | 4.5 | 7.5 | M6 | 10-16-20-30 | 5-6-7.5-9 |
