Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) Others available upon request – Contact us for details |
| Main Insert | Zinc plated steel threaded stud. |

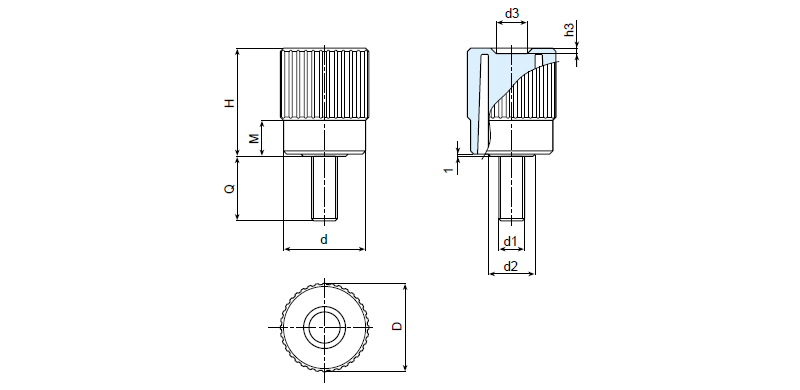

| Art. | D | H | M | h3 | d | d2 | d3 | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|
| N741-40 M10 | 41 | 51 | 16.5 | 2 | 38 | 22 | 14.5 | M10 | 20-25-30-35-40 | 86-88-91-93-95 |
| N741-40 M12 | 41 | 51 | 16.5 | 2 | 38 | 22 | 14.5 | M12 | 20-25-30-35-40 | 97-100-103-107-110 |
| N741-40 M14 | 41 | 51 | 16.5 | 2 | 38 | 22 | 14.5 | M14 | 20-25-30-35-40 | 100-105-110-115-120 |
