Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Zinc plated steel threaded stud. |

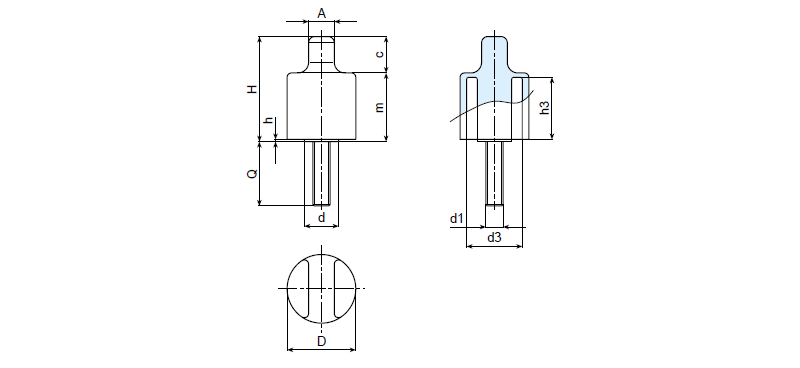

| Art. | D | H | d | A | c | m | h | h3 | d3 | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G797-32 M06 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | M06 | 16-20 | 33-37 |
| G797-32 M08 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | M08 | 16-32 | 42-45 |
| G797-32 M10 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | M10 | 20-40 | 51-57 |
| G797-32 M12 | 32 | 49 | 16 | 12 | 15 | 34 | 1 | 29 | 25.5 | M12 | 20 | 59 |
