Description
| Material | (2-3) Duroplast. Oils and greases resistant. High temperatures resistant. |
| Surface | Glossy |
| Colour | Black (RAL 9011) |
| Main Inserts | (1) Threaded Insert with male element in brass. (4) M25-00 Toothed washer in black-oxide treated steel DIN 6798. M35-50 Corrugated washer in black-oxide treated steel DIN 137. M70-00 Corrugated washer in black-oxide treated steel DIN 137. (5) Threaded hex |

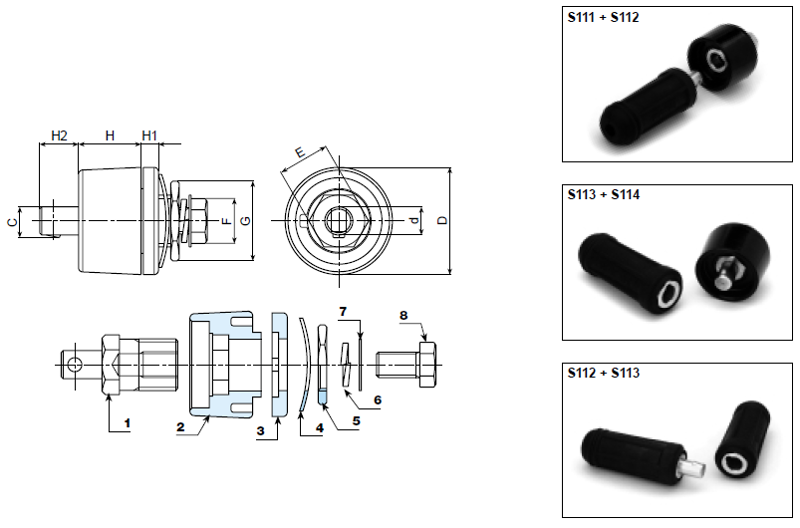

| Art. | D | H | H1 | H2 | d | c | E | F | G | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|
| S114-M25-00 | 33 | 14 | 4 | 7 | 9 | 9.5 | 14 | 13 | 22 | 60 |
| S114-M35-50 | 50.5 | 29 | 7 | 9 | 13 | 14 | 21 | 17 | 27 | 194 |
| S114-M70-00 | 50.5 | 29 | 7 | 9 | 13 | 14 | 24 | 19 | 32 | 242 |
