Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Brass blind threaded bush |
| Fixing Screw | Brass blind threaded bush. (*)Zinc plated steel blind threaded bush |

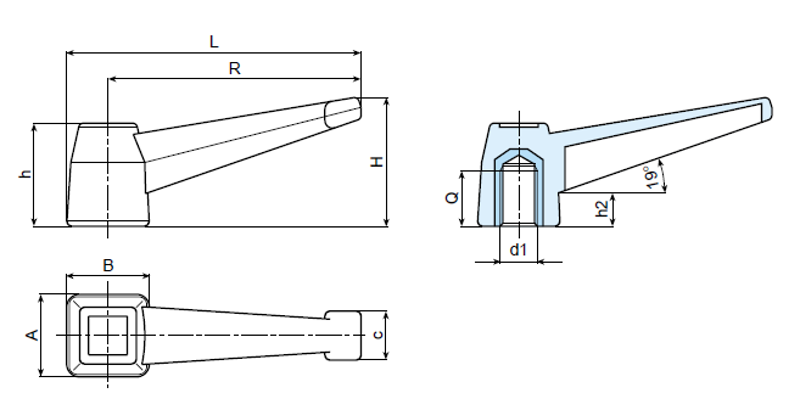

| Art. | L | R | H | A | B | c | h | h2 | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A524-98 M12 | 112 | 96 | 51 | 32 | 32 | 19 | 40 | 12 | M12 | 19 | 64 |
| A524-98 M14 | 112 | 96 | 51 | 32 | 32 | 19 | 40 | 12 | M14 | 19 | 68 |
| A524-98 M16 | 112 | 96 | 51 | 32 | 32 | 19 | 40 | 12 | M16(*) | 16 | 80 |
