| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Brass blind threaded bush. |

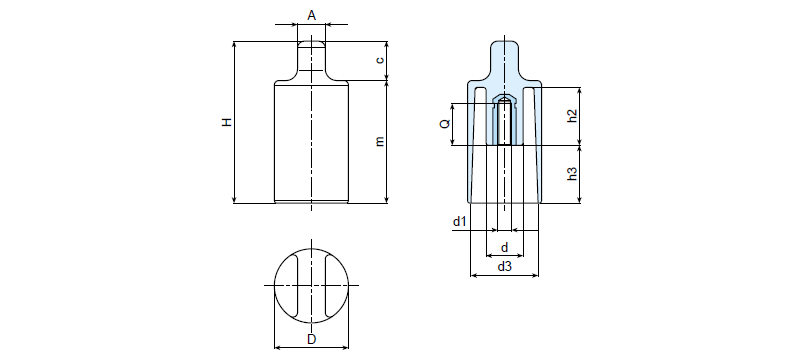

| Art. | D | H | d | A | c | m | h2 | h3 | d3 | d1 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G798-32 M06 | 32 | 69 | 12 | 12 | 15 | 54 | 25 | 26 | 28 | M06 | 22 | 32 |
| G798-32 M08 | 32 | 69 | 12 | 12 | 15 | 54 | 25 | 26 | 28 | M08 | 20 | 35 |
If available, alternative imperial dimensions for this product will be displayed.
If none is shown, please feel free to call us to discuss your requirements.
