Description
| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Zinc plated steel blind bored bush with H7 tolerance. |

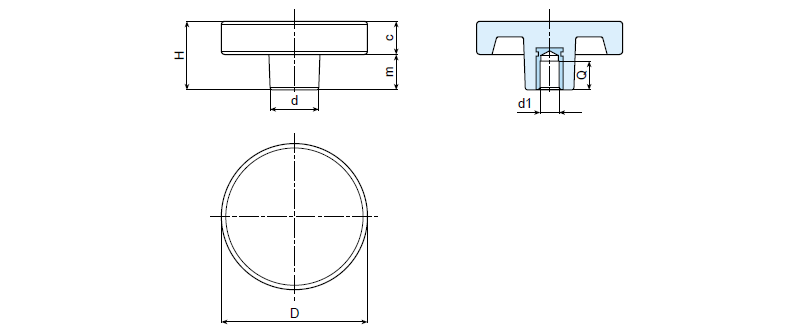

| Art. | D | H | d | c | m | dm | d1 H7 | Q | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|
| G792-50 D08 | 50 | 30.5 | 22 | 15 | 15 | 12 | 8 | 20 | 62 |
| G792-66 D05 | 65 | 30 | 22 | 15 | 15 | 12 | 05 H9 | 20 | 80 |
| G792-66 D12 | 65 | 30 | 22 | 15 | 15 | 12 | 12 | 20 | 75 |
