| Material | Reinforced polyamide. Oils and greases resistant |
| Surface | Satin |
| Colour | Black (RAL 9011) |
| Main Insert | Zinc plated steel right through hole. |

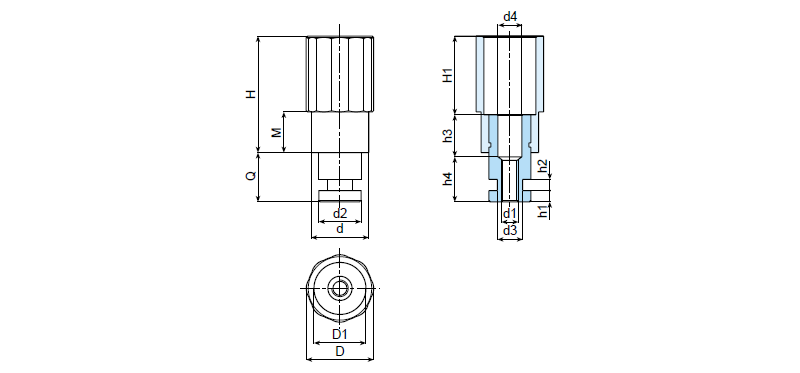

| Art. | D | D1 | d | H | H1 | M | Q | d2 | d1 | d3 | d4 | h1 | h2 | h3 | h4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N240-40 | 39 | 21 | 32 | 63 | 33 | 12 | 25÷40 | 20 | " | " | " | " | " | " | " |
| N240-50 | 48 | 36 | 41 | 83 | 55 | 29 | 25÷40 | 28÷30 | " | " | " | " | " | " | " |
If available, alternative imperial dimensions for this product will be displayed.
If none is shown, please feel free to call us to discuss your requirements.
