Bar Stop (R809)

SKU: R809 Category:

Description

Material Reinforced polyamide. Oils and greases resistant
Surface Satin
Colour Black (RAL 9011)
Hole Smooth right through hole obtained by moulding the plastic.
Main Insert (1) Zinc plated steel nut DIN 934/UNI 5588.
Locking Handwheel R809-130: SKU G732-30 M6x25.
R809-158: SKU G732-40 M6x30.

r809

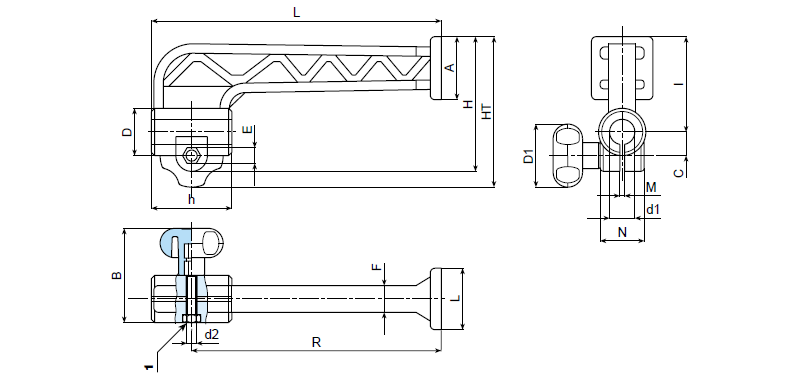

Art. R L H HT D D1 A B C E F G I M N h d1 d2 Weight (gr)
R809-130 D12 13215085902530254612101424632,5 233713M6 72
R809-130 D13 13215085902530254612101424632,5 233713M6 70
R809-130 D16 13215085902530254612101424632,5 233716M6 67
R809-158 D16 158185951052940395715101738702,5 275016M6 130
R809-158 D20 158185951052940395715101738702,5 275016M6 123

If available, alternative imperial dimensions for this product will be displayed.

If none is shown, please feel free to call us to discuss your requirements.
