6-Lobe Handwheel With Threaded Female Insert (F175)

SKU: F175 Category:

Description

Material Reinforced polyamide. Oils and greases resistant
Surface Satin
Colour Black (RAL 9011)
Main Insert Brass blind threaded bush

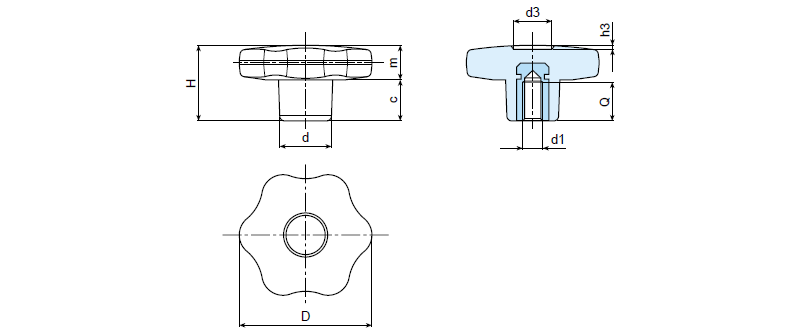

f175

Art. D H d c m d3 h3 Q d1 Weight (gr)
F175-30 M04 302215111191.57M4 11.5
F175-30 M05 302215111191.514M5 11.5
F175-30 M06 302215111191.510M6 12
F175-30 M08 302215111191.514M8 13.5
F175-30 M10 302215111191.514M10 14
F175-40 M05 4024.5171212.512114M5 22
F175-40 M06 4024.5171212.512116M6 22
F175-40 M08 4024.5171212.512114M8 21.5
F175-40 M10 4024.5171212.512114M10 21
F175-50 M06 502920141514.51.516M6 36
F175-50 M08 502920141514.51.514M8 36
F175-50 M10 502920141514.51.514M10 37
F175-50 M12 502920141514.51.518M12 39
F175-60 M08 6034241618181.519M8 59
F175-60 M10 6034241618181.521M10 59
F175-60 M12 6034241618181.518M12 62
F175-60 M14 6034241618181.519M14 63

If available, alternative imperial dimensions for this product will be displayed.

If none is shown, please feel free to call us to discuss your requirements.
